FQDN access, end to end

This is the complete FQDN workflow: a connected desktop resolves one private hostname through the selected private DNS resolver, then reaches only the protocol and port allowed by its access rule.

The working path is:

managed desktop
  └─ WireGuard tunnel
       └─ assigned Tunnex gateway
            └─ active hub path, when the resolver uses another gateway
                 └─ resolver-selected gateway
                      ├─ private DNS resolver on UDP/TCP 53
                      └─ resolved workload on the allowed port

Tunnex coordinates, routes, and enforces this path. It does not provide a vendor-hosted relay, host DNS, discover a cloud account, or create a private DNS zone for you. In a one-gateway deployment, the assigned, hub, and resolver-selected gateway are the same machine.

Do not call the setup complete from one green badge. Prove all of these:

The verified Azure walk used throughout this guide resolves dev.internal.tunnex.io to 172.16.0.4 through the Azure DNS Private Resolver inbound endpoint 172.16.2.4, then reaches Nginx on TCP 80.

Record the exact values for your deployment. Do not start with a wildcard or a whole VNet.

Use a private subdomain you control. Keep its zone private; publishing an RFC1918 A record in public DNS is not a substitute for private DNS.

Before configuring FQDN access, confirm:

• your organization has the fqdn_resources entitlement;
• you are a verified-email owner or administrator with FQDN resource management permission;
• the gateway is active and healthy;
• the site contains approved routes for the resolver subnet and every private answer the hostname may return;
• the workload and resolver subnets return the Tunnex device pool through the gateway;
• the private DNS zone contains the exact record; and
• policy enforcement is enabled or scheduled for a controlled change window.

For the full Azure infrastructure build—VNet, dedicated gateway, private VM, return UDR, private zone, and resolver inbound endpoint—follow Azure gateway to a private VM.

FQDN policy cannot repair a missing route. From the gateway, prove the private service by IP before adding DNS:

export APP_PRIVATE_IP="172.16.0.4" # Replace with your workload address.
curl --fail --show-error --max-time 10 "http://${APP_PRIVATE_IP}/"

Expected result: the application returns its known marker or expected status. Independently inspect the service log and the gateway’s route table. If the IP request fails, stop and repair site approval, forwarding, cloud firewall, and the device-pool return route.

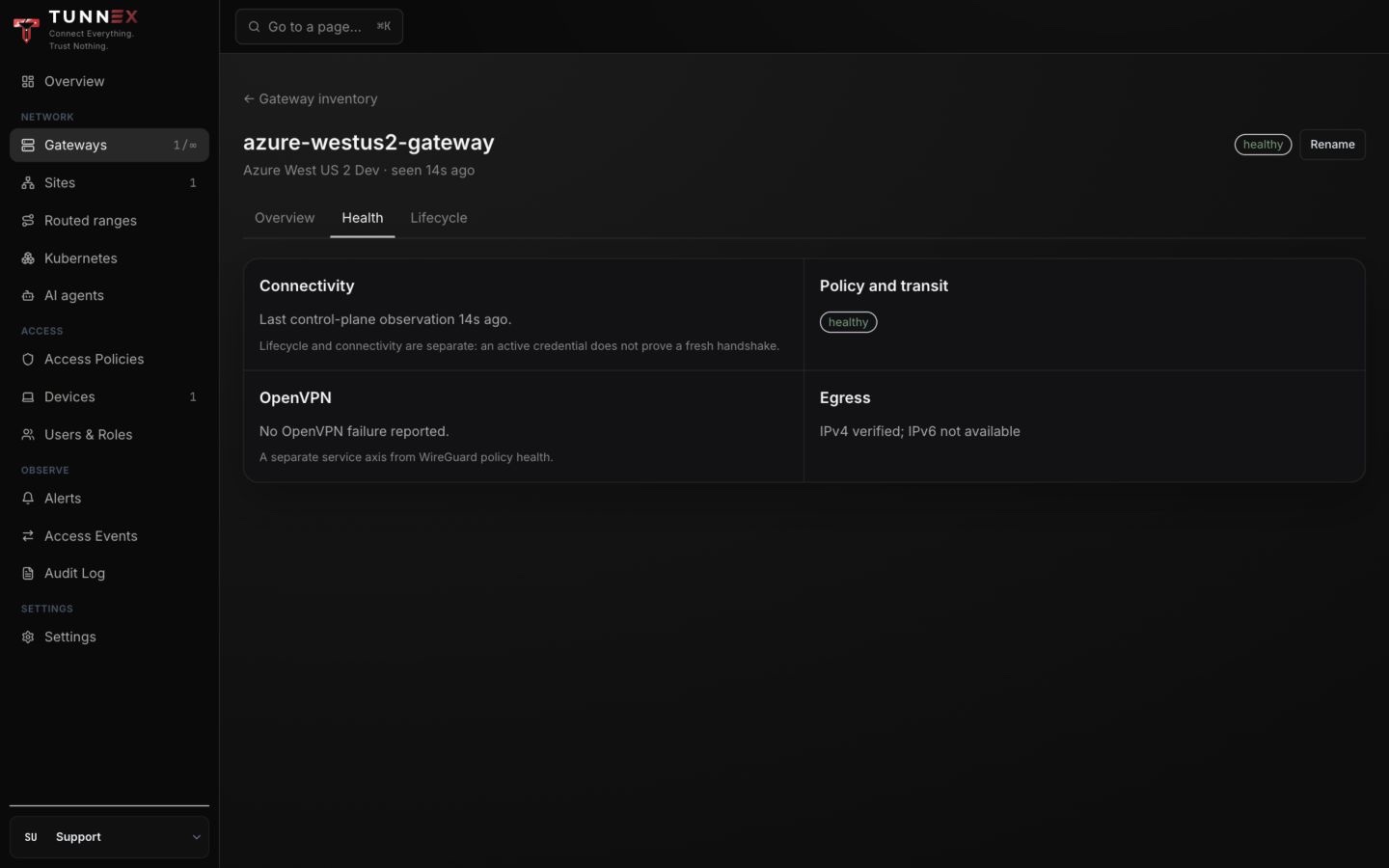

Open Gateways → your gateway → Health. Connectivity and Policy and transit must be current and healthy.

View full size

Expected result: the gateway reports a recent control-plane observation and healthy policy/transit state. Independently run sudo wg show on the gateway and confirm a recent handshake when the test client is connected.

Query the resolver directly over both transports. This isolates cloud DNS from desktop projection and policy.

export PRIVATE_RESOLVER_IP="172.16.2.4" # Replace with your endpoint.
export PRIVATE_HOSTNAME="dev.internal.tunnex.io"

dig +short @"$PRIVATE_RESOLVER_IP" "$PRIVATE_HOSTNAME" A
dig +tcp +short @"$PRIVATE_RESOLVER_IP" "$PRIVATE_HOSTNAME" A

Both commands must return the expected workload address. If one fails, fix the DNS record, endpoint listener, security group/NSG, route, or return path before continuing.

On Azure, use an Azure DNS Private Resolver inbound endpoint. The VNet-local Azure resolver address is not directly usable by a remote Tunnex device. The inbound endpoint subnet must be dedicated to Microsoft.Network/dnsResolvers, advertised through Tunnex, and associated with the device-pool return UDR.

1. Open Access Policies → Resources.
2. Select FQDN.
3. Under Private DNS resolvers, choose the intended Site and Gateway.
4. For a new path, select Configure profiles; the modal is titled Configure private DNS profiles. For an existing path, select Edit profiles; the modal is titled Activate new DNS profile version.
5. Enter a stable profile name and select the provider. Provider selection is descriptive; it does not connect Tunnex to the cloud account.
6. Enter one or more comma-separated zone suffixes without *..
7. For the golden path, add one literal resolver IP on UDP 53. Independently prove that the same DNS server also accepts TCP 53 for truncated-response fallback.
8. Review the displayed resolver path and select Activate profiles.

View full size

The live-walk screenshot shows the same Azure endpoint entered once for UDP and once for TCP. That is a stricter two-member resolver consensus: both configured queries must succeed and return the same canonical answer set. The entries are not primary/fallback targets.

Expected result: the selected Site/Gateway row reports Active, a new version, and the intended suffix/endpoints. Independently repeat the gateway UDP and TCP dig tests; activating a profile does not prove the endpoint works.

Resolver matching is deliberately strict:

• the most-specific boundary suffix wins;
• profiles and endpoints are not fallback targets for one another;
• duplicate ownership of the same suffix is ambiguous and fails closed;
• an unmatched hostname sends no resolver request; and
• changing profiles creates a new version instead of rewriting history.

Every configured endpoint/transport is an authoritative consensus member. A timeout, lookup failure, or answer disagreement withdraws the result; TTL-only differences use the minimum TTL. The current service accepts up to eight endpoints per profile and follows CNAME chains to a bounded depth. For a managed desktop, provide at least one reachable literal UDP 53 endpoint; a TCP-only or non-53 profile can support server-side resolution but cannot be projected as the desktop’s native scoped resolver.

1. Stay on Access Policies → Resources → FQDN.
2. Select Create resource, then Create FQDN resource.
3. Enter a stable Name and the one Exact hostname.
4. Choose Protocol and the narrowest port scope the application needs.
5. Choose the intended Site and Gateway.
6. Confirm that the correct resolver is selected automatically, including its matching suffix, active version, and endpoint count.
7. Select Create resource.

View full size

The screenshot stages a second example to show every field; the verified live resource below is Dev Nginx, dev.internal.tunnex.io, TCP 80.

Expected result: the resource enters resolving, then becomes healthy with an active generation and answer count. Independently query the resolver from the gateway and compare the returned address with the resource detail.

Do not create a manual CIDR resource for the resolver and do not add separate user-facing UDP/TCP 53 rules. When an eligible FQDN access rule compiles, Tunnex derives the required resolver carriage from its selected profile and keeps it bound to the parent rule’s lifecycle. These are compiler grants, not extra resources or child rules shown in the console.

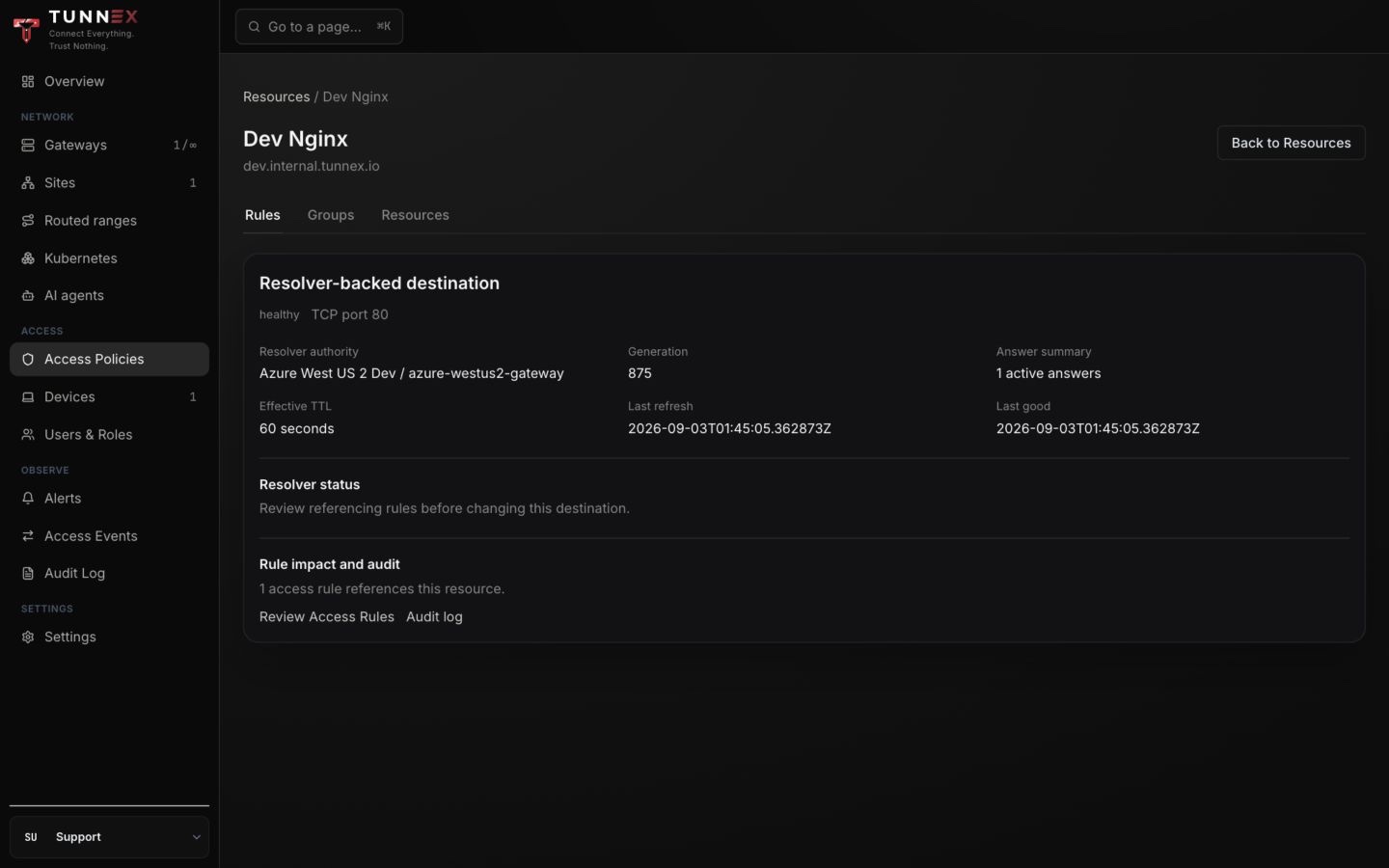

Open the resource row after it becomes healthy.

View full size

Expected result: the detail page names the resolver authority and shows a current generation, active-answer count, effective TTL, last refresh, last good time, and referencing-rule count. It does not display the answer IPs. Independently compare a direct gateway query with the known workload address. Refresh the page while waiting; the current resource view does not poll from resolving to healthy.

Answers are capped, TTLs are bounded, and refresh occurs before expiry. A lookup failure, NXDOMAIN, SERVFAIL, timeout, inconsistent resolver answers, or answer overflow withdraws the active generation rather than authorizing stale data. IPv4 and IPv6 families are validated independently: a prohibited answer drops that family, while a valid sibling family may still publish. Last-good data can remain visible briefly for diagnosis but is never an authorization source.

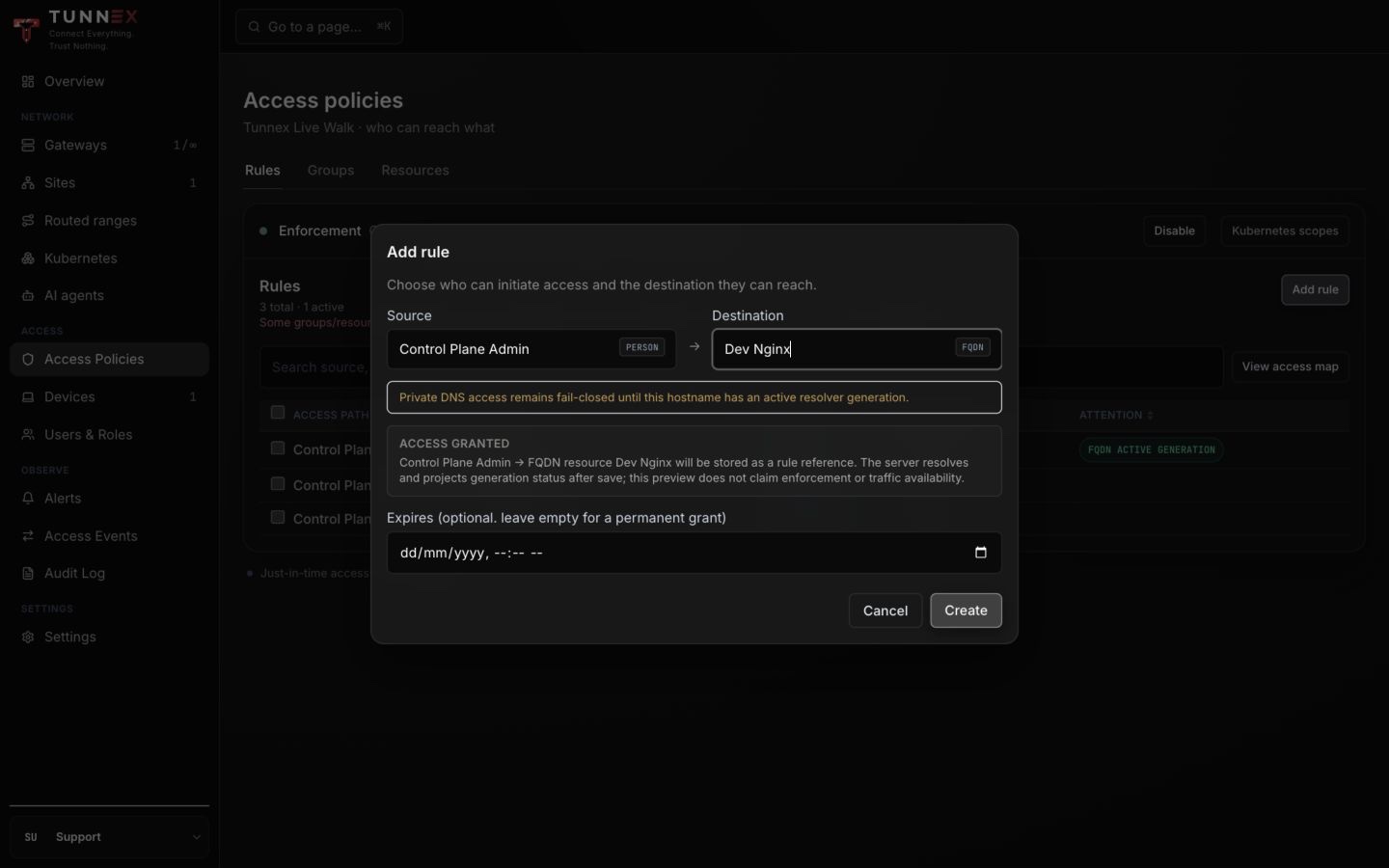

1. Open Access Policies → Rules and select Add rule.
2. For managed desktop DNS, choose a person, people group, managed agent, or managed-agent group that matches the device. A Site or source CIDR rule does not project a per-desktop resolver.
3. For the destination, choose FQDN resource, then select the resource you just created.
4. Read the generated Access granted sentence.
5. Add an expiry for temporary access, or leave it empty for a reviewed standing grant.
6. Select Create.

View full size

Expected result before enforcement: the rule is enabled, while its attention badge explains that FQDN opt-in or generation state still prevents traffic. After both gates are enabled, the authoritative badge text is FQDN ACTIVE GENERATION. Prove the real desktop traffic and negative control; an Active row by itself means only that the rule is enabled.

When the rule is eligible, the gateway policy contains exact /32 IPv4 or /128 IPv6 destinations for the current answers, scoped to the resource’s protocol and ports. Tunnex does not broaden the answer to a subnet.

Use the policy rollout change window to enable global default-deny only after ordinary CIDR/site rules and negative tests are ready. The Enforcement banner on Access Policies → Rules must report On.

Then enable the separate organization FQDN opt-in:

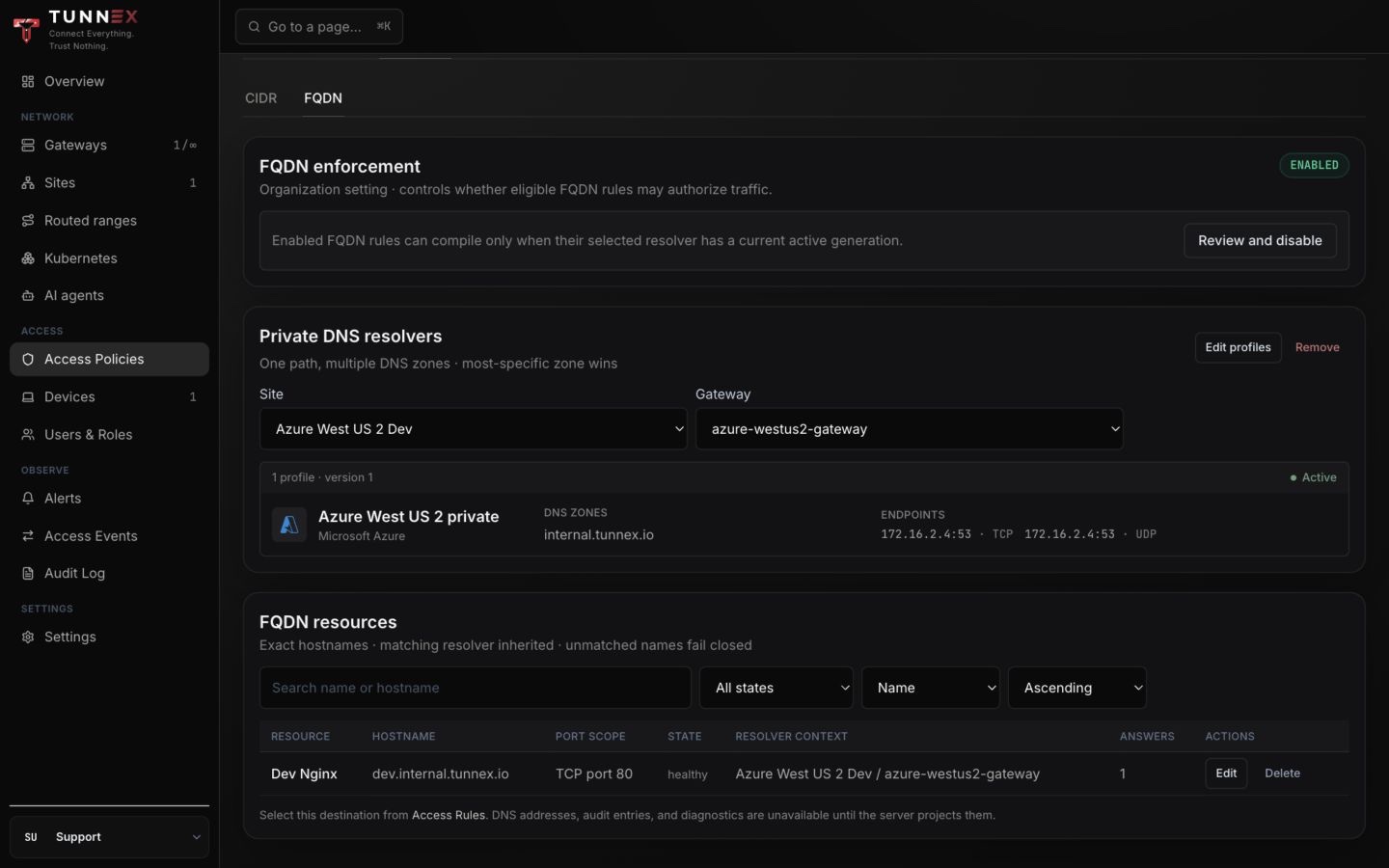

1. On Access Policies → Resources → FQDN, find FQDN enforcement.
2. Select Review and enable.
3. Wait for the server impact preview. Confirm that the entitlement is available and review the enforcement-ready rule count and IDs.
4. Select Enable FQDN enforcement.

The browser sends the server-issued impact token when it confirms the change; do not bypass this safety flow with a database edit.

View full size

Expected result: the FQDN card reports ENABLED and the rule attention badge reports an active FQDN generation. Independently verify the organization-setting change in Audit Log, then wait for the gateway to apply the new policy revision before testing traffic.

Disabling global enforcement opens the mesh according to that broader mode; disabling only the FQDN setting withdraws FQDN authorization organization-wide. Resolver profiles, resources, and history remain visible, but FQDN rules carry no traffic until their dedicated setting is enabled again.

Use Tunnex Desktop v0.1.1 or later. The automatic DNS steps in this guide do not apply to a static WireGuard import or the current Linux CLI profile.

1. In Profiles, select Tunnex account, not an imported .conf file.
2. In Settings → Routing, choose Only Tunnex routes for split tunnel or the reviewed full-tunnel mode.
3. Disconnect before changing that setting, then reconnect.
4. Wait for Connected, but do not stop at the label.

The managed client periodically receives routes and DNS forwards. It installs the suffix rule through its privileged helper and removes Tunnex-owned entries on a clean disconnect. If applying a resolver fails, the current connection fails static: the tunnel remains up, but the new DNS forward is not silently claimed as installed.

Use the system resolver for the end-to-end lookup. A direct dig @server proves only the DNS endpoint; plain dig does not reliably exercise macOS supplemental resolver selection.

export PRIVATE_ZONE="internal.tunnex.io"
export PRIVATE_HOSTNAME="dev.internal.tunnex.io"
export PRIVATE_RESOLVER_IP="172.16.2.4"
export APP_PRIVATE_IP="172.16.0.4"

# Tunnex owns one readable scoped resolver file for this suffix.
sudo ls -l "/etc/resolver/${PRIVATE_ZONE}"
sudo cat "/etc/resolver/${PRIVATE_ZONE}"

# macOS has loaded the suffix-scoped resolver.
scutil --dns | grep -A 8 -B 2 "$PRIVATE_ZONE"

# The native system resolver returns the private address.
dscacheutil -q host -a name "$PRIVATE_HOSTNAME"

# Both destinations use the Tunnex tunnel.
route -n get "$PRIVATE_RESOLVER_IP"
route -n get "$APP_PRIVATE_IP"

# The allowed application request succeeds by hostname.
curl --fail --show-error --max-time 10 \
  -o /dev/null -w 'status=%{http_code} remote_ip=%{remote_ip}\n' \
  "http://${PRIVATE_HOSTNAME}/"

Expected live-walk evidence:

-rw-r--r-- ... /etc/resolver/internal.tunnex.io
# tunnex-managed
nameserver 172.16.2.4

name: dev.internal.tunnex.io
ip_address: 172.16.0.4

interface: utun...
status=200 remote_ip=172.16.0.4

The resolver file must be mode 0644 so macOS services can read it. If an older client recreates it as 0600, upgrade to Desktop v0.1.1 or later and reconnect; do not make a recurring chmod workaround part of the deployment.

Open PowerShell as the connected user:

$PrivateZone = 'internal.tunnex.io'
$PrivateHostname = 'dev.internal.tunnex.io'
$AppPrivateIp = '172.16.0.4'

# The effective Name Resolution Policy Table contains the Tunnex suffix.
Get-DnsClientNrptPolicy -Effective |
  Where-Object Namespace -EQ ".$PrivateZone" |
  Format-List Namespace,NameServers

# Windows resolves through the suffix rule.
Resolve-DnsName $PrivateHostname -Type A

# The intended port is reachable and HTTP names the private peer.
Test-NetConnection $PrivateHostname -Port 80
curl.exe --fail --show-error --max-time 10 `
  -o NUL -w "status=%{http_code} remote_ip=%{remote_ip}`n" `
  "http://$PrivateHostname/"

Expected result: the effective NRPT rule maps the zone to the private resolver, Resolve-DnsName returns the workload IP, TcpTestSucceeded is True, and the HTTP request returns the intended status. Disconnect and confirm the Tunnex-owned NRPT rule is removed.

A successful allowed request is half the security proof. Test at least one nearby path that must stay denied:

• the same hostname on an ungranted port;
• the same resource from a user outside the source group; or
• a sibling hostname with no FQDN resource/rule and a different answer.

Expected result: the allowed request succeeds and the negative control does not. Review Access Events and gateway counters to distinguish policy denial from DNS or routing failure.

FQDN policy is destination IP, protocol, and port enforcement after DNS resolution. It is not HTTP Host-header or TLS SNI isolation. If two services share the same answer and port, the network layer cannot distinguish them; separate them by address/port or add application-layer authorization.

Useful gateway checks:

sudo wg show
ip route get 172.16.2.4
dig +short @172.16.2.4 dev.internal.tunnex.io A
dig +tcp +short @172.16.2.4 dev.internal.tunnex.io A
sudo journalctl -u tunnex-node --since '15 minutes ago' --no-pager

If the agent runs in Docker, use its container logs instead of assuming a systemd service name.

• FQDN resources accept exact hostnames; wildcard resources are not supported.
• A resource is bound to one selected Site/Gateway resolver context.
• Tunnex does not create cloud private zones, records, inbound endpoints, routes, NSGs/security groups, or return UDRs.
• Resolver endpoints are literal IPs; hostname endpoints are not accepted.
• Profiles are suffix selectors, not ordered failover chains. Conflicting or inconsistent answers fail closed.
• If rules matching one desktop produce the same suffix with different resolver IPs, Tunnex withholds that suffix forward rather than guessing.
• Managed desktop projection currently requires a reachable UDP 53 endpoint.
• Static WireGuard imports and the current Linux CLI do not receive managed suffix-scoped DNS lifecycle.
• Split-tunnel access works only when the resolver and every returned private address are inside approved routed ranges.
• A healthy resource proves current DNS state, not policy, client setup, application health, or the cloud return route.
• FQDN rules enforce network destinations; they do not authenticate the application or distinguish virtual hosts sharing an IP and port.

For a low-disruption DNS cutover, lower the authoritative TTL in advance, verify the new service by IP, publish old and new answers together, and wait for a healthy generation containing both. Move and verify client traffic, then remove the old answer after the cache window. Replacing old with new in one step withdraws the old exact route immediately and may flush matching connections; leaving the old service running does not keep that address authorized. Account for the 30-second effective TTL floor.

To withdraw access:

1. disable or delete the FQDN rule;
2. confirm the gateway applied the new policy and the client request fails;
3. retain a resource that has ever produced an immutable answer generation as history; only a never-resolved draft with no generation history can be deleted;
4. remove or replace the resolver profile only after reviewing every suffix it owns; and
5. disable organization-wide FQDN enforcement only when you intend to withdraw all FQDN rules.

Keep the DNS zone and cloud routes until the withdrawal has been independently verified. Deleting infrastructure first converts a controlled policy change into an ambiguous outage.

Record these items in the change ticket without secrets:

• control-plane and Desktop versions;
• organization, Site, and gateway names;
• exact hostname, resolver suffix, and application port;
• approved resolver and workload ranges;
• profile version and FQDN generation;
• allowed and denied test identities;
• timestamps for direct DNS, system DNS, route, application, and audit proofs; and
• rollback owner.

Never capture join tokens, device profiles, private keys, bearer tokens, passwords, or resolver credentials. The screenshots in this guide come from an isolated Azure validation environment and contain none of those values.
